Vision1210

Vision1210™

Advanced PLC from the back- big and high resolution color 12.1" touchscreen. Snap-in I/Os for an All-in-one; expands up to 1000 I/O's.

Vision1210 front

Front

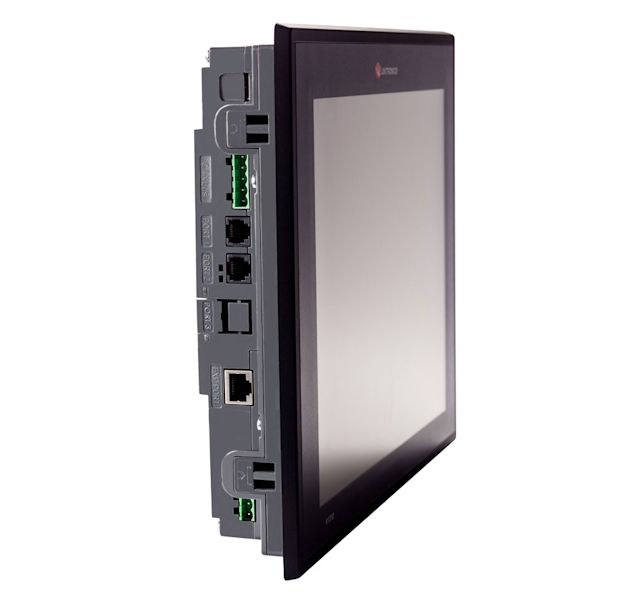

Vision1210 side

Side

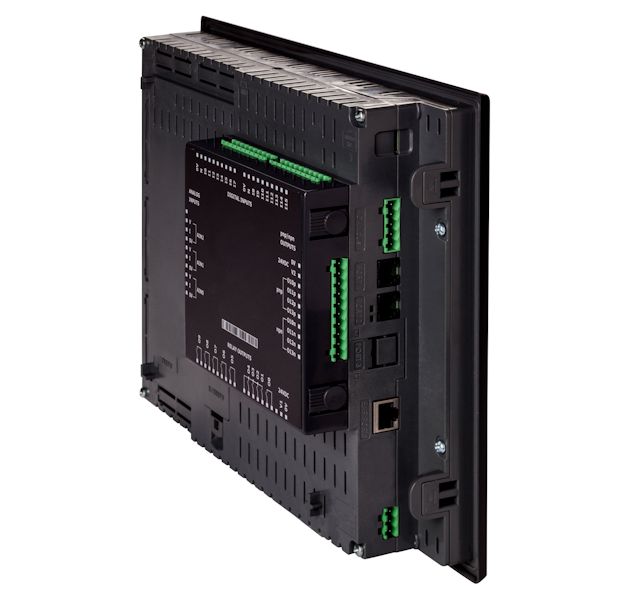

Vision1040 back

Back

Click on an image to view a larger version; use your browser's "Back" button to return to this page.

Vision1210 Overview

+PLC

  • I/O options include high-speed, temperature and weight measurement
  • Auto-tune PID, up to 24 independent loops
  • Recipe programs and data logging via Data Tables
  • Micro SD card – log, backup, clone and more
  • Date and time-based control

+HMI

  • Up to 1024 user-designed screens
  • 1500 images per application
  • HMI graphs – color-code Trends
  • Built-in alarm screens
  • Text String Library – easy localization
  • Memory and communication monitoring via HMI – No PC needed

+Communication

  • TCP/IP via Ethernet
  • Web server: Use built-in HTML pages or design complex pages to view and edit PLC data via the Internet
  • Send e-mail function
  • SMS messaging
  • GPRS/GSM
  • Remote Access utilities
  • MODBUS protocol support
  • BACnet, M-bus – via 3rd-party converter
  • CANbus: CANopen, UniCAN, SAE J1939 and more
  • DF1 Slave
  • SNMP Agent V1
  • FB Protocol Utility: enables serial or TCP/IP communications with 3rd-party device; barcode readers, frequency converters, etc
  • Ports: supplied with 2 isolated RS232/RS485, 1 CANbus, 1 USB programming port; 1 port may be added for serial/Ethernet

+I/O

  • I/O options include digital, analog, high-speed, temperature and weight measurement. See tables below:
    • Snap-in I/O Modules
    • I/O Expansion Modules

Vision1210 Details

+I/O Options

Snap-in I/O Modules: Plug these modules directly into the back of the Vision unit to create a self-contained PLC with up to 62 I/O's. Inputs may include Digital, Analog and Temperature measurement. Outputs may include Transistor, Relay or Analog (sold separately)

I/O Expansion: Local or Remote I/O's may be added via expansion port or via CANbus. Expand up to 1000 I/O's — see I/O Expansion Modules below

+Program

Application Memory: Application Logic: 2MB · Images: 40MB · Fonts: 1MB

Scan Time: 9µ sec per 1K of typical application

Memory Operands: 8192 coils, 4096 registers, 512 long integers (32-bit), 256 double words (32-bit unsigned), 64 floats, 384 timers (32-bit), 32 counters
Additional non-retainable operands: 1024 X-bits, 512 X-integers, 256 X-long integers, 64 X-double words

Data Tables: 120K dynamic RAM data (recipe parameters, datalogs, etc.), up to 256K fixed data

SD Card (Micro): Store data logs, Alarm History, Data Tables, Trend data, export to Excel • Back up Ladder, HMI and OS, clone PLCs

USB: 1 USB programming port (Mini-B)

Enhanced Features: Trends: graph any value and display on HMI • Built-in Alarm management system • String Library: instantly switch HMI language

+Operator Panel

Type: TFT LCD

Display Backlight Illumination: White LED

Colors: 65,536 colors, 16 bit resolution · Brightness - Adjustable via touchscreen or software

Display Resolution and Size: 800 x 600 pixels (QVGA), 12.1"

Touchscreen: Resistive, Analog

Keys: Virtual keypad

+General

Power Supply: 12/24VDC

Battery Back-up: 7 years typical at 25°C, back-up for all memory sections and real-time clock (RTC)

Clock: Real-time clock functions (date and time)

Environment: IP66/IP65/NEMA4X (for panel, when mounted)

Standard: CE, UL Many of our products are also UL Class 1 Div 2 and GOST certified - please contact Unitronic

Snap-in I/O Modules

Tip: this table is best viewed on a wider screen such as a laptop or desktop PC

+Snap-in I/O Modules

  Inputs Outputs
Snap-in I/O Modules Digital (isolated)1 HSC/Shaft-encoder4 Analog Temperature
Measurement
Transistor (isolated)2 PWM/HSO2 Relay Analog Operating Voltage
V200-18-E1B16 pnp/npn2
10kHz
32-bit
3
0-10 V,
0-20mA,
4-20mA
10-bit
None4
pnp/npn
2
pnp 0.5kHz
npn 50kHz
10None24VDC
V200-18-E2B16
pnp/npn
2
10kHz
32-bit
2
0-10 V,
0-20mA,
4-20mA
10-bit
None4
pnp/npn
2
pnp 0.5kHz
npn 50kHz
102
0-10 V,
0-20mA,
4-20mA
12-bit
24VDC
V200-18-E3XB18
pnp/npn
2
10kHz
32-bit
4 (Isolated)
Thermocouple,
PT100, 0-10V,
0-20mA, 4-20mA
14-bit
2
pnp/npn
2
pnp 0.5kHz
npn 50kHz
154 (Isolated)
0-10 V,
4-20mA
12-bit
24VDC
V200-18-E4XB18
pnp/npn
2
10kHz
32-bit
4 (Isolated)
Thermocouple,
PT100, 0-10V,
0-20mA, 4-20mA
14-bit
15 pnp
2 npn/pnp
2 pnp 0.5kHz
npn 50kHz
None4 (Isolated)
0-10 V,
4-20mA
12-bit
24VDC
V200-18-E5B18
pnp/npn
2
10kHz
32-bit
3
0-10 V,
0-20mA,
4-20mA
10-bit
None15 pnp
2 npn/pnp
2
pnp 0.5kHz
npn 50kHz
NoneNone24VDC
V200-18-E6B18
pnp/npn
2
100kHz
50-bit
2 Thermocouple, PT100,
0-10V, 0-20mA,
4-20mA 14-bit;
3 0-10V,
0-20mA, 4-20mA
10-bit
2
pnp/npn
2
pnp 0.5kHz
npn 50kHz
152 (Isolated)
0-10 V,
4-20mA
12-bit
24VDC
V200-18-E46B318 pnp/npn2
10kHz
32-bit
6
0-10 V,
0-20mA,
4-20mA
14-bit;
3
0-10 V,
0-20mA,
4-20mA
10-bit
None2
pnp/npn
2
pnp 0.5kHz
npn 100kHz
152 (Isolated)
0-10 V,
4-20mA
12-bit
24VDC
V200-18-E62B330
pnp/npn
2
10kHz
32-bit
2
0-10 V,
0-20mA,
4-20mA
10-bit
None28 pnp
2 npn/pnp
2
pnp 0.5kHz
npn 100kHz
NoneNone24VDC

Notes:

  1. The total number of digital inputs listed includes high-speed inputs.
  2. The total number of digital outputs listed includes high-speed outputs.
  3. Not yet UL certified.

I/O Expansion Modules

Tip: this table is best viewed on a wider screen such as a laptop or desktop PC

+I/O Expansion Modules

Inputs Outputs
  Expansion Modules Digital 5 HSC/Shaft-encoder 5 Analog Temperature
Measurement
Weight
Measurement
Transistor 6 PWM/HSO 6 Relay Analog Operating
Voltage
Digital IO-DI8-TO88 pnp/npn1
5kHz 16-bit
NoneNoneNone8 pnpNoneNoneNone24VDC 9
IO-DI8-RO48 pnp/npn1
5kHz 16-bit
NoneNoneNoneNoneNone4None24VDC 9
IO-DI8-RO88 pnp/npn1
5kHz 16-bit
NoneNoneNoneNoneNone8None24VDC 9
EX90-DI8-RO8 38 pnp1
5kHz 16-bit
NoneNoneNoneNoneNone8None24VDC 9
IO-DI1616 pnp/npn1
5kHz 16-bit
NoneNoneNoneNoneNoneNoneNone24VDC 9
IO-TO16NoneNoneNoneNoneNone16 pnpNoneNoneNone24VDC 9
IO-RO8NoneNoneNoneNoneNoneNoneNone8None24VDC 9
IO-RO16NoneNoneNoneNoneNoneNoneNone16None24VDC 9
IO-DI8ACH8 ACNoneNoneNoneNoneNoneNoneNoneNone110/220 VAC

Inputs Outputs
  Expansion Modules Digital 5 HSC/Shaft-encoder 5 Analog Temperature
Measurement
Weight
Measurement
Transistor 6 PWM/HSO 6 Relay Analog Operating
Voltage
Analog, Temperature and Weight/Strain Measurements IO-AI4-AO2NoneNone4
0-10V,
0-20mA,
4-20mA
12-bit
NoneNoneNoneNoneNone2
±10V
12-bit+sign,
0-20mA,
4-20mA
12-bit
24VDC
IO-PT400NoneNoneNone4
PT100 / NI100 / NI120
NoneNoneNoneNoneNoneNot relevant
IO-PT4KNoneNoneNone4
PT1000 / NI1000
NoneNoneNoneNoneNoneNot relevant
IO-AO6XNoneNoneNoneNoneNoneNoneNoneNone6 (Isolated)
0-10V,
0-20mA,
4-20mA
12-bit
24VDC
IO-LC11 pnpNoneNoneNone1
Loadcell / Strain gauge
2 pnpNoneNoneNone24VDC
IO-LC31 pnpNoneNoneNone3
Loadcell / Strain gauge
2 pnpNoneNoneNone24VDC
IO-ATC8NoneNone8 Thermocouple, 0-10V,
0-20mA, 4-20mA 14-bit
NoneNoneNoneNoneNoneNot relevant
IO-AI8NoneNone8
0-10V,
0-20mA,
4-20mA
14-bit
NoneNoneNoneNoneNoneNoneNot relevant

Inputs Outputs
  Expansion Modules Digital 5 HSC/Shaft-encoder 5 Analog Temperature
Measurement
Weight
Measurement
Transistor 6 PWM/HSO 6 Relay Analog Operating
Voltage
XL Digital / Analog IO-D16A3-RO1616
pnp/npn
2
30kHz
16/32-bit 8
3
0-20mA,
4-20mA
10-bit
NoneNoneNoneNone16None24VDC
IO-D16A3-TO1616
pnp/npn
1
30kHz
16/32-bit 8
3
0-20mA,
4-20mA
10-bit
NoneNone15 pnp,
1 pnp/npn
1
pnp 0.5kHz
npn 50kHz
NoneNone24VDC
EX-D16A3-RO8 716
pnp/npn
2
30kHz
16/32-bit 8 8
3
0-20mA,
4-20mA
10-bit
NoneNoneNoneNone8none24VDC
EX-D16A3-TO16 716 pnp/npn1
30kHz
16/32-bit 8
3
0-20mA,
4-20mA
10-bit
NoneNone15 pnp
1 pnp/npn
1
pnp 0.5kHz
npn 50kHz
NoneNone24VDC

Inputs Outputs
  Expansion Modules Digital 5 HSC/Shaft-encoder 5 Analog Temperature
Measurement
Weight
Measurement
Transistor 6 PWM/HSO 6 Relay Analog Operating
Voltage
High-speed Remote I/O Module EXF-RC15 2,49 pnp/npn3
200kHz
32-bit
NoneNoneNone4 npn4
(up to 3 PTO)
2None24VDC


Notes:

  1. Number of supported I/Os and I/O modules varies according to module
  2. The EXF-RC15 functions as a node in a Vision UniCAN network and connects to the Vision controller via CANbus and programmed in VisiLogic. The EXF-RC15 cannot be extended as regular I/O unit.
  3. The EX90 is housed in an open casing. Only one EX90 can be connected per PLC, as a single expansion module; Expansion adapter not required.
  4. Supported by Vision series. Not supported by M91 series.
  5. The total number of digital inputs listed includes high-speed inputs.. Example: the IO-D16A3-TO16 offers a total of 16 pnp/npn inputs. You can configure I4 as a HSC and I5 as a Counter reset; this reduces the available number of digital inputs to 14.
  6. The total number of digital outputs listed includes high-speed outputs. Example: the IO-D16A3-TO16 offers a total of 16 transistor outputs. You can configure 1 to High-speed output, reducing the number of available digital outputs to 15.
  7. Functions as local adapter. Can support up to 7 I/O modules
  8. 16-bit or 32-bit, depending on the PLC
  9. Also available as 12VDC – contact us for part number

Visilogic™ Software for Vision1210™

All-in-One programming environment. Simple, fast development for both Ladder and HMI applications.

Information and download

Document Downloads

Tip: to save these files to your PC you may need to right-click and select "Save as..."

+Installation Guide

DownloadV1210-T20BJ

+Technical Specifications

DownloadV1210-T20BJ

+2D Drawing

DownloadV1210-T20BJ

+3D Drawing

DownloadV1210-T20BJ

What does Vision1210 look like?
